Technology & Function

  • Disassebling
    Disassebling

    The DSG20 contra-angle can be disassembled with a simple twist for easy internal cleaning. However, when attached to a motor, it will not disassemble accidentally due to NSK's unique locking mechanism.

  • Cellular Glass Optics
    Cellular Glass Optics

    Cellular Glass Optic delivers brilliant illumination, is highly durable and will not deteriorate due to repeated sterilisation.

  • Titanium Body
    Titanium Body

    Titanium body*. Light and very strong pure titanium is used for the body. The light handpiece reduces the burden on the hands during operations, and its enhanced hardness also improves its ability for autoclave sterilization. The biocompatible properties of titanium eliminate concern over allergies to metals. (X-DSG20L / X-DSG20 / X-SG20L / X-SG20 / X-SG93L / X-SG93 / X-SG65L / X-SG65)
    *Titanium is used only for the exterior parts, and not for the interior.

  • Double Sealing System
    Double Sealing System

    NSK's original double sealing system reliably prevents blood and bodily fluids from entering the instrument head. This guarantees longevity of the instruments. (X-DSG20L / X-DSG20 / X-SG20L / X-SG20 / SG20)

  • DURACOAT
    DURACOAT

    NSK's latest surface enhancement technology, takes advantage of the non allergic and biocompatible properties of titanium to further improve durability. DURACOAT creates a smooth, scratch resistant surface which is comfortable to hold. (X-DSG20L / X-DSG20 / X-SG20L / X-SG20 / X-SG93L / X-SG93 / X-SG65L / X-SG65)

  • Push Button Chuck
    Push Button Chuck

    Push Button Chuck is NSK's original push button auto-chuck mechanism that tensions the bur grip during rotation. It allows one-touch bur insertion and removal without tools. The bur lock mechanism is designed so that bur retention strength increases when high loads are applied to the bur. (X-DSG20L / X-DSG20 / X-SG20L / X-SG20 / SG20 / X-SG93L / X-SG93)

Implant

X-DSG20L20:1

  • Surgical Applications/X-DSG20L
    • Optic
    • Model:X-DSG20L
    • Order Code:C1068
    • Non-Optic
    • Model:X-DSG20
    • Order Code:C1067

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Double Sealing System

    Lamineer tips not included

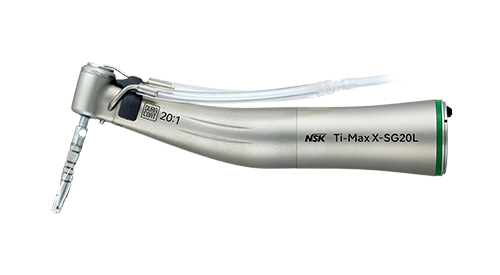

X-SG20L20:1

  • Surgical Applications/X-SG20L
    • Optic
    • Model:X-SG20L
    • Order Code:C1003

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Double Sealing System

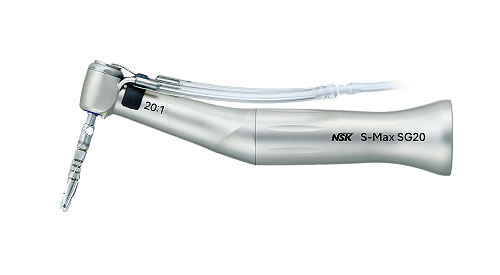

SG2020:1

  • SG20
    • Non-Optic
    • Model:SG20
    • Order Code:C1010

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling (Kirschner and Meyer)
    • Body Material
    • Stainless Steel
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Push Button Chuck
    • Double Sealing System

Contra-angle (Increasing)

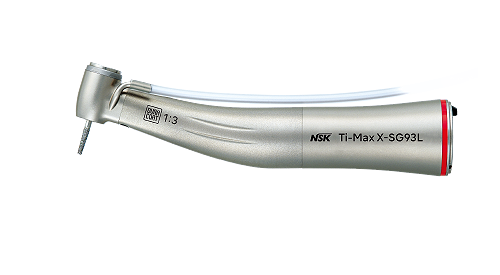

X-SG93L1:3

  • Surgical Applications/X-SG93L
    • Optic
    • Model:X-SG93L
    • Order Code:C1004
    • Non-Optic
    • Model:X-SG93
    • Order Code:C1007

    Specifications

    • Gear Ratio
    • 1:3 Increasing
    • For
    • FG Burs (Ø1.6)
    • Water Spray
    • Triple Spray / External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 120,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck

Contra-angle (Direct Drive)

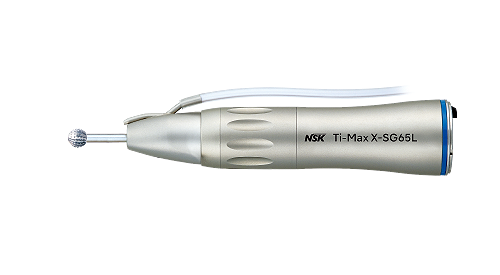

X-SG65L1:1

  • Surgical Applications/X-SG65L
    • Optic
    • Model:X-SG65L
    • Order Code:H1009
    • Non-Optic
    • Model:X-SG65
    • Order Code:H1038

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • HP Burs (Ø2.35)
    • Water Spray
    • External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System

Surgery

SGS-ES1:1

  • SGS-ES
    • Non-Optic
    • Model: SGS-ES
    • Order Code:H264

    Specifications

    • Head
    • Straight Handpieces
    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • For Surgical Burs (Ø2.35)
    • Max Speed
    • 40,000 min-1

    Features

    • Twist Chuck

SGS-E2S1:2

  • SGS-E2S
    • Non-Optic
    • Model:SGS-E2S
    • Order Code:H266

    Specifications

    • Head
    • Straight Handpieces
    • Gear Ratio
    • 1: 2 Increasing
    • For
    • Surgical Burs (Ø2.35)
    • Max Speed
    • 80,000 min-1

    Features

    • Twist Chuck

SGA-ES1:1

  • SGA-ES
    • Non-Optic
    • Model:SGA-ES
    • Order Code:H263

    Specifications

    • Head
    • 20° Angle Handpieces
    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • For Surgical Burs (Ø2.35)
    • Max Speed
    • 40,000 min-1

    Features

    • Twist Chuck

SGA-E2S1:2

  • SGA-E2S
    • Non-Optic
    • Model:SGA-E2S
    • Order Code:H265

    Specifications

    • Head
    • 20° Angle Handpieces
    • Gear Ratio
    • 1:2 Increasing
    • For
    • For Surgical Burs (Ø2.35)
    • Max Speed
    • 80,000 min-1

    Features

    • Twist Chuck
